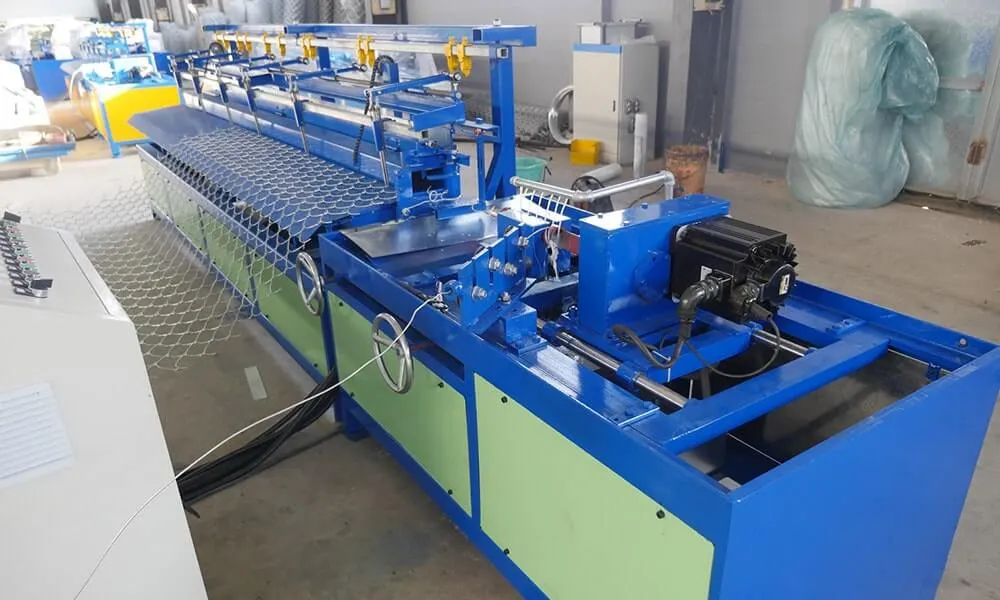

Semi automatic chain link fencing machine

Our electric panel is incorporated with a next-generation Mitsubishi-programmable automation controller(PLC) having a revolutionary high speed system bus that inproves productivity through advanced performance and functionality.

Our electronic panel is also incorporated with Schneider electric components and touchwin touchscreen

Production - 2.5 to 3 Tonnes/-day

Order Now
  • Electric Panel ( Fully Auto Type )
  • Wire pay-off stand-250 kg capacity
  • Cutting Machine - Delta 6hp / Housine 5hp
  • Weaving Machine-Heavy duty Break motor + gear
  • 5.5 Kw Extra Transformer
  • Remote Control
  • Mitsubishi Pic Control
  • Schneider Electricals
  • Power Required 8 hp
  • No of Motors 3
  • 4MM :- 155-170 kg/ Per Hour
  • 3.5MM :- 135-150 kg/ Per Hour
  • 3MM :- 115-130 kg/ Per Hour
  • 2.5MM :- 90-95 kg/ Per Hour
  • 2MM :- 65-70 kg/ Per Hour
  • Moulds -( 30, 40, 50, 55, 60, 75, 80, 100 MM )
  • Tool Kit
  • Oil Dispenser
  • Wheels & Spares
  • Sensor
  • Relay
  • Gloves
  • Magnets
  • Space Required - 6 X 1.5 mtr
  • Mesh Size - 32 mm to 110 mm
  • Wire Dia
  • GI - 2 to 4.5 mm
  • PVC - 3 TO 6 mm
  • SS - 2 TO 4 mm
  • Roll Size - 1 X 3 mtr
